C&I Energy Storage System
55kW/100kWh Microgrid Energy Storage System
All-in-one solar-storage-diesel microgrid system with 55kW PCS, 100kWh LFP battery, IP54 Outdoor C&I BESS
Specifications
- Model
- SF-100kWh+55kW/IP54-X1
- Battery Capacity
- 100kWh
- PCS Rated Power
- 55kW
- MPPT Power
- 75kW (2 channels)
- AC Voltage
- 400Vac/230Vac
- Configurated with
- GEN set interface

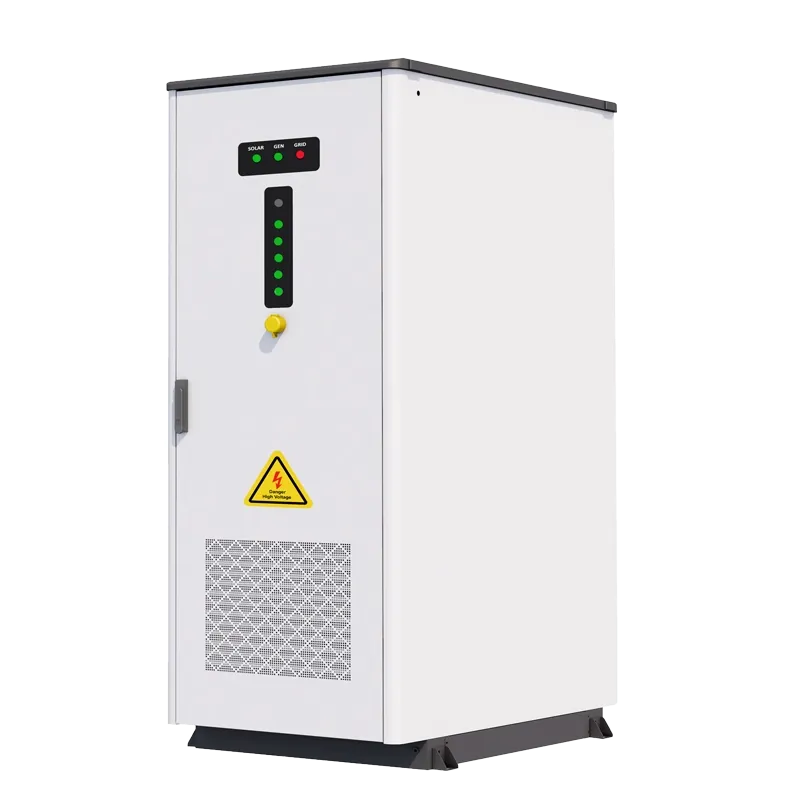

Sunfid 55kW / 100kWh Microgrid Energy Storage System (IP54-X1)
All-in-one solar-storage-diesel microgrid system
with 55kW PCS, 100kWh LFP battery, IP54 protection.
Supports 3-unit parallel operation for commercial & industrial applications. Connect up to 3 units in parallel for 165 kW / 300 kWh.
- microgrid energy storage
- commercial industrial BESS
- solar storage diesel hybrid
- 100kWh energy storage system
- IP54 outdoor energy storage
- C&I battery energy storage
- all-in-one microgrid system
- peak shaving energy storage
Sunfid's engineering team brings over 15 years of field experience in energy storage and microgrid deployment, with hundreds of large-scale projects delivered across demanding environments worldwide. Every unit is built around A-grade LFP cells managed by a vehicle-standard BMS, wrapped in a layered safety architecture that includes active fire suppression and precision climate control.
Built for the Outdoors, Engineered for the Long Haul
IP54-rated enclosure. Dust-tight and splash-proof. Drop it in the desert, on a rooftop, or at the edge of a mining site — rain, sand, salt spray, and temperature swings from -10°C to +50°C won't compromise performance. Skip the equipment room; install it directly on-site.
6,000+ cycle LFP cells. Commercial-grade lithium iron phosphate cells rated for 80% depth of discharge. At one full cycle per day, that's 16+ years of daily operation before degradation hits 80% capacity.
Automotive-grade BMS. Cell-level monitoring of voltage, current, and temperature with six-layer protection: overcharge, over-discharge, overcurrent, over-temperature, short circuit, and reverse polarity — all handled at the cell level, not just the pack level.
Flexible Operation Modes
Run the system the way your project demands:
- Grid-tied — feed excess solar back to the grid or use grid power as backup
- Off-grid — full standalone operation for remote sites with no grid access
- Microgrid — coordinate PV, battery, diesel generator, and load in one intelligent loop
- Peak shaving — store cheap off-peak power, discharge during expensive peak hours
- Emergency backup — instant switchover when the grid drops
The built-in diesel generator interface lets you pair solar + storage + diesel for uninterrupted power supply.
When the grid fails, the system switches to diesel seamlessly — no manual intervention, no load interruption.
Specifications
Parameter | Value |
|---|---|
Model | SF-100kWh+55kW/IP54-X1 |
Battery Capacity | 100 kWh |
PCS Rated Power | 55 kW |
MPPT Power | 75 kW (2 channels) |
MPPT Voltage Range | 200–800 Vdc |
AC Voltage | 400 Vac / 230 Vac |
Protection Rating | IP54 — outdoor-ready |
Parallel Expansion | Up to 3 units |
Diesel Generator Integration | Yes |
Integrated Subsystems | BMS+PCS+EMS+ fire protection systems+ HVAC |
Dimensions (L×W×H) | 740 × 1170 × 2060 mm |
Weight | ≈ 1,200 kg |
Cycle Life | ≥ 6,000 cycles @ 80% DoD |
Operating Modes | Grid-tied / Off-grid / Microgrid / Peak shaving / Emergency backup |
Operating Temperature | -10°C to +50°C |
Full Integration, Zero On-Site Headaches
On-site work is limited to placing the unit, connecting AC and DC cables, and running grid-commissioning checks. Typical installation time: hours, not weeks.
Customization & OEM Support
- Capacity configuration — adjust battery capacity to match your load profile
- Interface adaptation — custom communication protocols (Modbus, CAN, IEC 61850, etc.)
- Protocol development — integrate with your existing SCADA or EMS platform
- System design support — our engineering team helps with microgrid sizing and architecture
Sunfid — delivering integrated energy storage solutions for commercial and industrial applications worldwide. Factory-direct supply. Full international certifications. Project-ready deployment.
